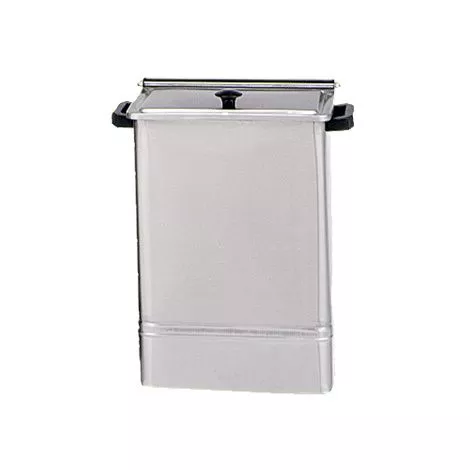

Chattanooga E 1 Hydrocollator Heating Unit Features
- Thermostatically controlled temperature
- Durable and easy-to-maintain heating unit
- Simple to fill and drain
- No plumbing required
- Insulated with fiberglass to stop heat loss
Chattanooga Hydrocollator E-1 Heating Unit Instruction Manual
More Information
- Caution:
– The thermostat is extremely sensitive and the slightest adjustment will alter the temperature several degrees
– The recommended operating temperature is 160°F to 166°F (71°C to 74°C)
– The temperature of the water should be checked with a thermometer after every adjustment, before using the HotPacs
– Always keep the water level over the top of the HotPacs to avoid burning or scorching of the packs
– Never allow the HotPacs to dry after use
– Check water level daily as it has a natural loss due to evaporation
– Do not move the Hydrocollator while filled with water
– Tipping over could result in burns to the user or others
– Always unplug the Hydrocollator from the power source before attempting to empty water from unit
– Make certain the unit is electrically grounded by plugging into a hospital grade electrical outlet with a ground terminal receptacle (U-ground outlet), 120 VAC only
– Always replace Hydrocollator HotPacs as soon as they show signs of wear
