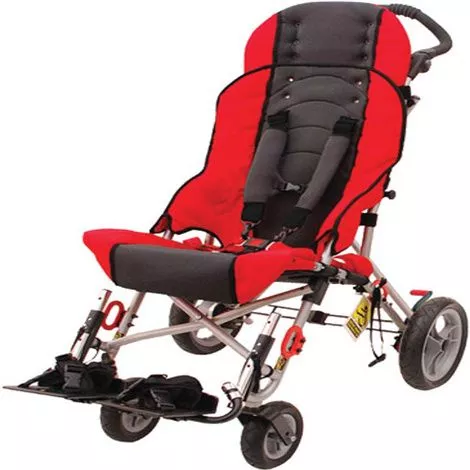

Convaid Cruiser Wheelchair Features
- Toggle Wheel Locks
- Seat Depth Growth of 5″
- 2-Point Positioning Belt
- Silver Powder Coated Frame
- Two Piece Push Handles (CX18)
- 8″ Front, 11″ Rear Solid Tire (CX18)
- Quick Release Rear Wheels (CX10/12/14/16)
- Removable Adjustable Swing-Away Footplates
- 7.5 x 2″ Front, 11.5 x 2.5″ Rear Solid Tire (CX10/12/14/16)
- One Piece Height Adjustable Push Handle (CX10/12/14/16)
- Closure Strap – Helps in keeping the chair in folded position
- Self-Tension – Built in self-tensioning seating system increases sitting tolerance
What to buy with Convaid Cruiser CX Wheelchair
- Armrest Pad Covers
- Wheelchair Mount Bracket
- Positioning Belt
How to operate Convaid Pediatric Wheelchair?
Unfolding Convaid Wheelchair
- Lay chair flat on ground and unbuckle closure strap.
- Stand chair on front caster, grasp side of Push Handle and push down on Seat Tube.
- Press down firmly on seat tubes to ensure the chair is completely unfolded.
- Using your foot, push down on Lower Rear Lock Brace until it locks into a straight position.
- Press grey buttons on each side of Push Handle at the same time, and rotate Push Handle to desired height.
- Swing footplates down into position.
Folding the Pediatric Chair
- Swing footplates to the side.
- Press grey buttons on each side of Push Handle and rotate Push Handle down completely.
- Unlock Rear Lock Brace by kicking up on center of brace with foot.
- Grasp one side of Push Handle and pull up on seat fabric or seat tube with opposite hand.
- Lay chair back onto Push Handle. Push down on tubing above front tires until chair is folded.
- Buckle closure strap.
Lifting/Carrying the Convaid Chair
- To safely lift or carry the Convaid Chair, always use both hands.
- With one hand hold the chair by the front x- brace bar.
- With the other hand hold the chair by the back x-brace.
Convaid Cruiser Stroller User Manuals
- Convaid Cruiser Users Guide
- Convaid Cruiser Product Sheet
- Tray Attachment Instructions For Cruiser
- Straps Adjustment of 5-Point Harness
- Instruction For One Piece Push Handle
Convaid Cruiser CX Pediatric Wheelchair Safety Instructions
- Follow folding/unfolding instructi ons.
- Never leave occupi ed chair unattended.
- Do not attempt to take occupi ed chair up or down stairs, escalators, steep inclines, or i cy or slippery surfaces
- To avoid tipping, do not overload the chair, or hang heavy items on the handles that mi ght cause tipping.
- Be aware of newly created sharp edges.
- Frequently inspect the adjustments on the frame and the positi oning accessori es.
- Do not use chair after occupant has outgrown it.
- Do not i gnore minor malfuncti ons and maintain the chair in good operating conditi on. Monitor the wheel locks (brakes) regularly and adjust as needed.
- When going up a curb or step, face the chair forward and ti lt back to lift the front wheels over the curb. Move forward and lift the rear wheels over the curb.
- If and whenever possible and feasible, the rider should transfer out of the chair and into an approved vehicle seat and passenger restraint system. However, if a transfer i s not possible, use only desi gnated chairs in a moving vehi cle whi ch contain the Wheelchair Ti edown and Occupant Restrain System (WTORS) following the requirements of SAE J2249. Follow ti e-down harness manufacturer’s instructi ons carefully and refer to Convaid’s ‘Transit Guide’ for specifics.
- When going up a curb or step, face forward and ti lt the chair back to lift the front wheels over the curb. Move forward and lift the rear wheels over the curb.
- When going down a curb, approach the curb backwards. Lower the rear wheels down the curb and continue backwards, taking the wei ght off the front wheels so they can be gently lowered.
- When transferring user to or from chair, apply foot wheel locks.
- Maintain control of the chair at all timeswhi le going up/down ramp. Avoid steep slopes, parti cularly with a heavy occupant. If in doubt, do not attempt a descent unless a third party is present to help maintain control of chair.
