Features
- Model – CP150
- 12-lead resting ECG acquisition
- Automatic ECG interpretation
- 7-inch color touchscreen display
- Lead quality display for checking electrode connections
- 3-, 6-, and 12-lead ECG preview options
- ECG Print Preview for reviewing tracings before printing
- Quick-start functionality
- Battery operation for room-to-room mobility
- 100-test memory
- CardioPerfect Workstation connectivity via USB and Ethernet
- 100–240 V AC, 50/60 Hz operation
- AHA 10-lead patient cable
- Spirometry Not Included

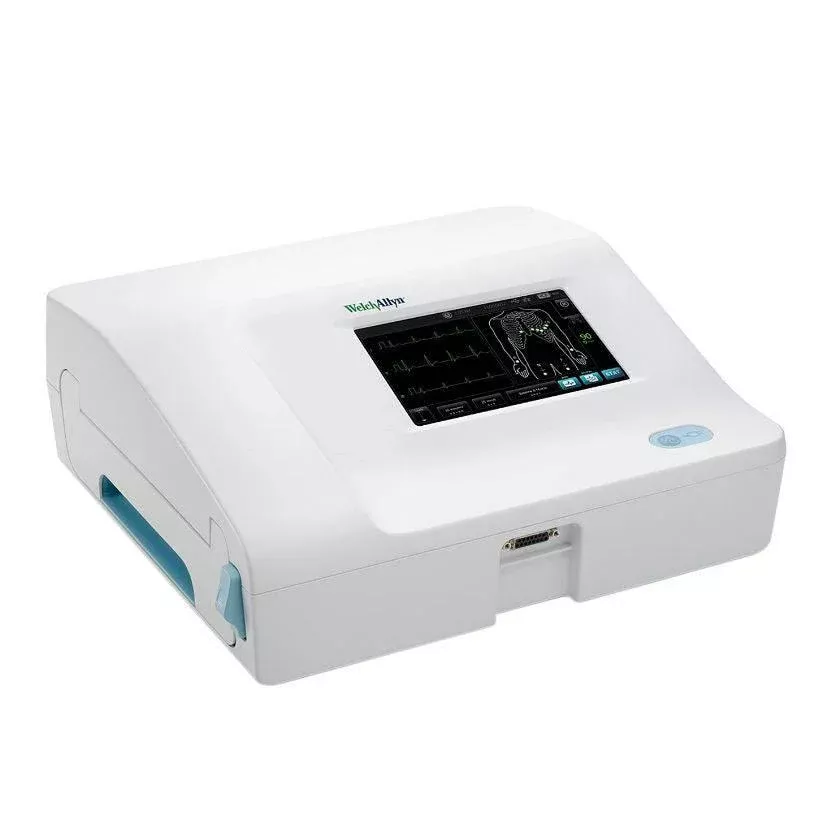

he CP150 is a 12-lead resting electrocardiograph designed for routine ECG testing in healthcare settings. Its 7-inch color touchscreen provides straightforward navigation and patient data entry, while the lead quality display helps identify connection issues before completing an ECG. Automatic ECG interpretation provides computer-generated results to support clinical review.
The device offers 3-, 6-, or 12-lead ECG preview options and ECG Print Preview, allowing users to review the tracing before printing. Quick-start functionality helps reduce startup delays, while battery operation supports convenient movement between exam rooms. The CP150 also provides 100-test memory and connectivity to the CardioPerfect Workstation through USB and Ethernet.
This CP150A-1ENB configuration features an AHA 10-lead patient cable, ECG multifunction electrode adapters, and disposable tab electrodes. The unit operates on 100–240 V AC at 50/60 Hz and is compatible with adult and pediatric ECG testing. Optional features such as spirometry and additional ECG interpretation software are available separately depending on configuration.
