Features

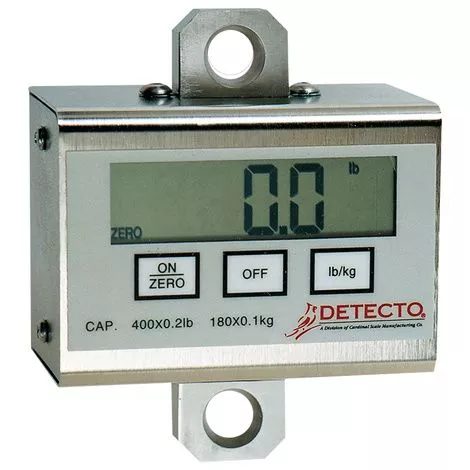

- Detecto Digital Patient Lift Scales Operate on only one 9V Alkaline battery (not included) with an automatic shut-off
- Battery power is saved due to the automatic shut-off feature
- Membrane keypad with only three keys: ON/ZERO, OFF and LB/KG
- Easy to set up and operate so the procedure is quickly learned
- Supplied with two spring “O” rings
- Owners Manual – PL400
- Owners Manual – PL600
More Information
- Installation:
– Remove the instrument from the shipping carton and inspect it for any signs of damage that might have taken place during shipment such as exterior dents and scratches.
– Install the battery.
– Place the indicator on the hook of the patient lift mechanism.
– The indicator is now ready for use - Battery Replacement:
– To install the battery, turn the indicator so that the display is facing down (away from you) and resting on the keypad.
– Locate the rectangular panel on the back of the indicator and remove the thumbscrew retaining it.
– Remove the panel exposing the battery holder.
– Install the 9 volt battery in the holder, making certain it is positioned in accordance with the polarity markings located in the battery holder.
