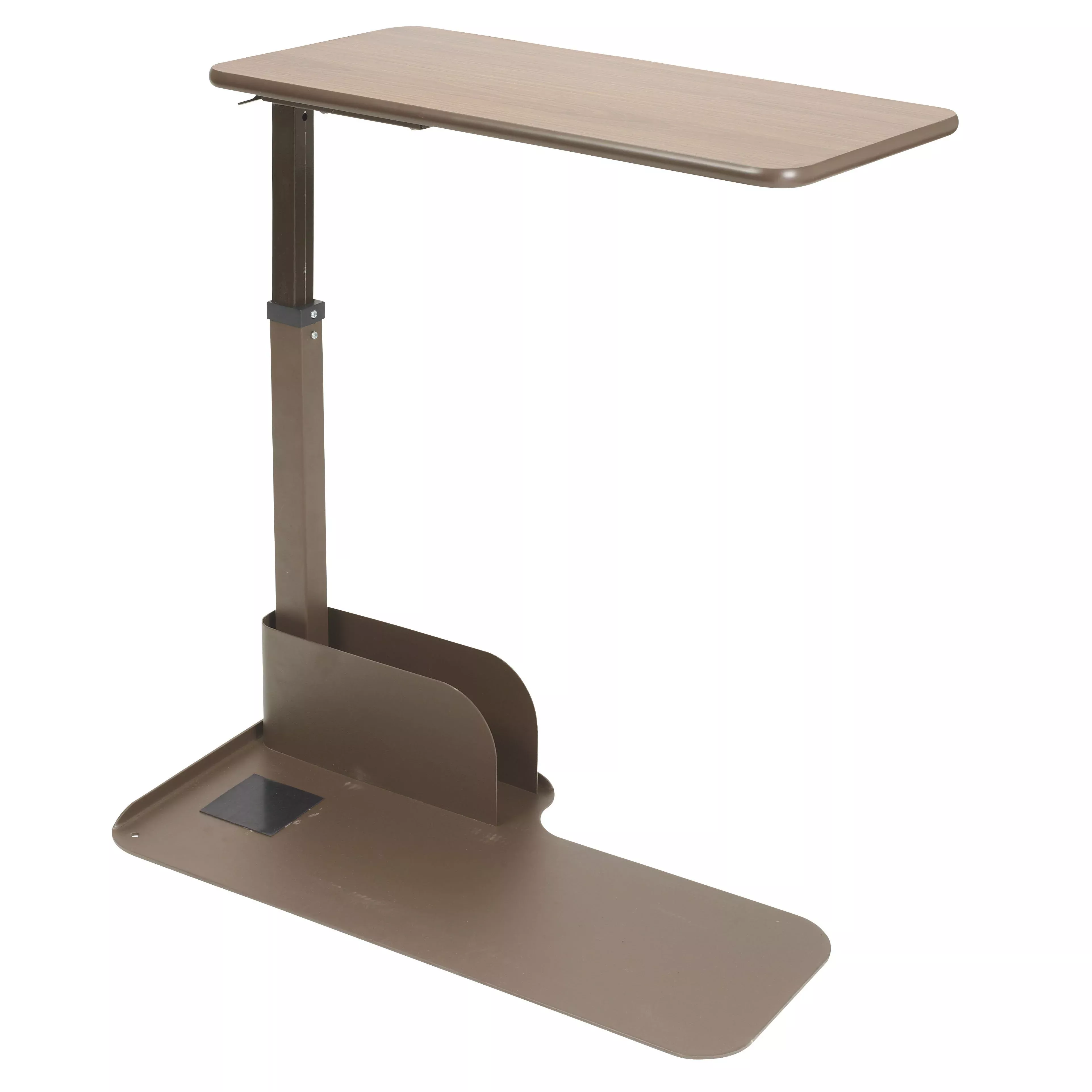

Drive Seat Lift Chair Table

Drive Seat Lift Chair Table Features

• Drive Seat Lift Chair Table is ideal for people who use lift chairs
• Right or left positioning with 180° rotation so that the chair can be placed by any wall
• Table top pivots 360° at the touch of a hand
• Drive Medical Seat Lift Chair Overbed Table require no attachment to secure in place
• Table top swivels to allow for easy access and departure

Note: Image shown with Lift Chair is not included

What to buy with Tables for Lift Chairs

• Aluminum Reacher With Magnetic Tip
• Straight Wand Mouth Stick
• Rigid Leg Lifter

How to assemble Drive Seat Lifts for Chairs?

1. Place the base under the left side of chair with the magazine rack opening facing the rear of the chair. Place the front left leg of the chair on the positioning pad located near the magazine rack.
2. Stand the Column on end, making sure the Trip Rod is visible in the rectangular tube but not protruding out of the top. If necessary, shake Column until the rod drops.
3. Insert Trip Handle into Column with the rounded side up. Be sure that the trip handle rests on top of the rod inside the colum.
4. Place the Top on a flat surface, with the Top Bracket facing upward. Then, while holding the Trip Handle in place so it doesn’t fall out, insert the Column into the Top Bracket. Align the holes in the Column foot, the Trip Handle and the Top Bracket. Install both bolts and both nuts thru these aligned holes with the two (2) 7/16” wrenches.
5. Pick up the Top and Column and place over the round tube on the Base inside of the magazine rack. Be sure the Column has dropped down all the way!
6. Remove the black shipping screw in the column and replace it with the zinc plated screw, using a Phillips screwdriver.

 WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

How to use Drive Medical Seat Lift Chair Overbed Table?

To elevate the table:

• Push upwards at any position on the underside of the top, until the top has reached the desired height.

To lower the table:

• Squeeze the trip handle and push the top down to the desired height.
• The table will operate best if the downward pressure is placed at the column end of the top.
• Occasional application of light oil lubrication between the inner and outer columns will help keep your Table operating smoothly.
• Penetrating oils with rust inhibitors are recommended.
• The table will swing a full 360º around on the base to be used as an end table or a lap tray as needed.

Drive Seat Lift Chair Table User Manual
