Features

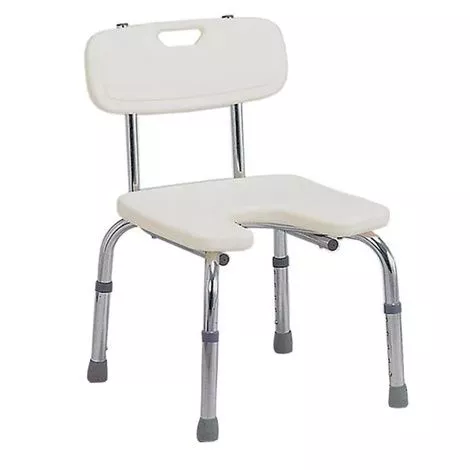

- Mabis DMI Hygienic Bath Seat with Backrest is easy to assemble with hardware and detailed instructions included
- Seat height adjusts from 13″ – 17″ in 1″ increments
- Seat size: 15 3/4″ x 14 1/2″
- Weight: 8lb
- Weight capacity: 250lb
- Anodized Aluminum Frame
- Caution: This product contains natural rubber latex which may cause allergic reactions
How to Assemble Mabis Bath Seat with Backrest?
- Insert washer between the front frame and back frame. Insert bolt through the center hole on the front and back frame and secure with washer and nut
- Place the plastic seat upside down on a flat surface. Place the leg assembly upside down on top of the seat and align the holes on the seat with the holes on the leg assembly. Use the screws and washers to secure the leg assembly to the seat
- Place the back brace bars underneath the seat and align the holes on the frame with the holes on the back brace bars. Use the screws and washers to secure the back brace bars to the legs
- Turn seat upright and place the backrest in front of the back brace bars and align the holes on the backrest with the holes on the back brace. Use the screws and washers to secure the backrest to the back brace
- Insert the extension legs into the front and back frame. Adjust the legs to the desired height, and lock the pins into place
Precaution to take while using Mabis Hygienic Bath Seat
- Make sure all screws are tightened securely
- For your safety, the four extension legs must always be locked into the same height position
- All pins must be pushed completely through the pinholes before using
Note: If any parts are missing, do not return to the place of purchase
