Features

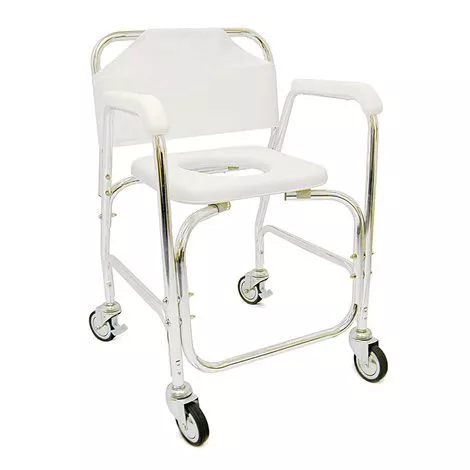

- Mabis DMI Shower Transport Chair has 250lb weight capacity
- Width between arms: 18″
- Overall width 21″
- Seat height: 21″ fixed
- Seat size: 16″ x 16″
- Weight: 18lb
- Caution: This product contains natural rubber latex which may cause allergic reactions.
More Information
- Assembly Instructions:
– Secure the rear brace (1) to both side supports (right & left) (2) using two screws (3) and two nuts (4) on each side
– Attach the front brace (5) by aligning the holes with those on the side supports (2). Insert two screws (3) and tighten with two nuts (4) on each side
– Align the holes on the backrest (6) with the holes on both side supports (2). Insert two screws (3) and secure with nuts (4) on each side
– Firmly push down on the seat (7) until it locks into place on both rear (1) and front (5) braces
– Tighten all screws securely using a screwdriver and pliers or wrench
– Do not over tighten as it could strip the threads - Caution: Make sure all screws and wing nuts are tightened securely. For your safety, the four extension legs must always be locked into the same height position. All pins must be pushed completely through the pinholes before using
Note: If any parts are missing, do not return to the place of purchase
