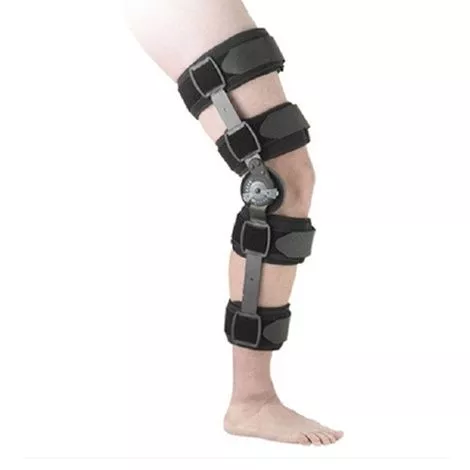

Knee Brace Features
- Locks quickly at 0°, 10°, 20°, 30°, 45°, 60°, 75°, and 90°
- Low-profile hinge, no exposed metal edges to scrape, catch or snag
- Durable, lightweight ergonomic design
- Easy to see range of motion stops
- Extension control from 10° to 90° (10° incremental)
- Flexion control from 0° to 120° (10° incremental)
- Indications:
- – Post-op/post-injury ROM control or immobilisation
– Cool model allows airflow and suits warmer climates
– Full foam allows wrap-around support
More Information
- Apply the Foam Wraps:
– Remove foam cuffs from hinge assemblies
– Apply calf and thigh foam cuffs snugly around the leg closing on front of the leg - Align and Apply Hinges:
– Position and press the lateral side bar assembly onto the cuffs along the midline of the leg centering the hinge pivot axes slightly above the knee joint line
– Repeat for the medial side bar assembly, ensuring that the hinge pivot axis align vertically
– Reposition the foam cuffs as needed, ensuring that the patella remains exposed - Secure the Leg Straps:
– Secure and fasten all straps, starting with the straps closest to the knee first - Brace Application and Removal:
Properly applied brace will have:
– Foam wraps secured at the front of the leg
– Hinges will be aligned vertically with each other at the midline of the leg, and pivot just above the knee axis
– All straps will be secured at the front of the leg - Removal and Re-Application:
– To remove the brace, unfasten the straps and open the foam pads
– The brace can then be removed and reapplied as a single unit - Hinge Operation and Adjustment:
– To adjust the hinge, press the flexion or extension button and rotate until the desired degree of flexion or extension shows through the corresponding window and release button
– The 0-lock settings are used to lock the brace in full extension - Enforced Compliance:
– Loop the enclosed lock ties through the hole in the flexion and extension buttons tolimit range of motion - Side Bar Adjustment:
– To breakdown the side bars, place the hinge on a hard flat surface with the scored line just off the edge and firmly press down to snap off
– Side bars can be bent to fit individual legs - Use and Care:
– Read all instructions completely before use
– All foam pads may be trimmed as necessary
– Hand wash foam liners with mild soap
– Air dry only
– Do not heat dry
Note: Always consult your physician or therapist before making any adjustments to the brace - Cautions and Warnings:
– Carefully read use instructions and warnings prior to operation
– Federal law restricts this device to sale by or on the order of a licensed health care practitioner
– For single patient use only
– If you experience increased pain, swelling, sensation changes or any adverse reactions while using this product, immediately consult your medical professional – This device will not prevent or reduce all injuries. Proper rehabilitation and activity modification are also essential parts of a safe treatment program
